Pre-Amps - Combo Series

Model no: CP-102

Retail store on-sale price : C$3,500

Our direct out-of-the-factory price C$1,780 Untitled Document [US$ 1513]

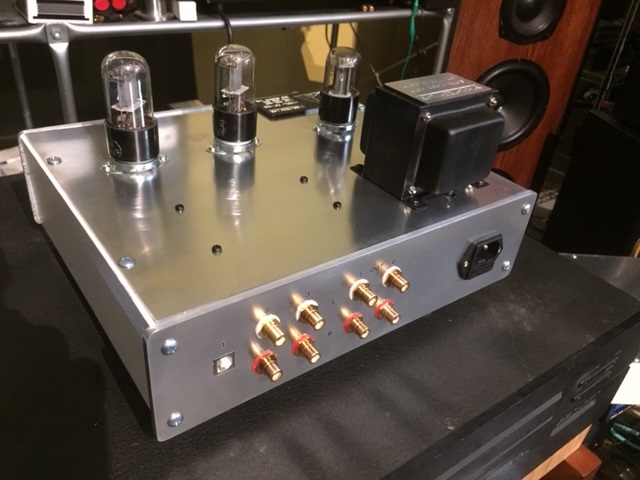

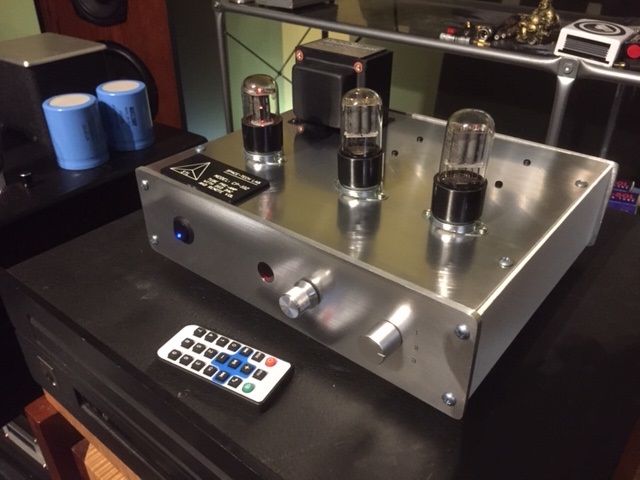

CP-101-2



(6X5GT + 6SL7 / 6SN7 x 2 pure tube pre-amplifier)

+ remote motorized volume control

+ USB-DSD DAC (max 256DSD and 32bit/384K PCM capable)



Using the most common 6SL7 as the amplification section gives you the most warm and easy rendition with such a low price. Once you experience this model of our products superior performance, you will see our higher models are beyond comparison.

This is one of our best selling models of pre-amplifiers integrated with a high grade motorized remote volume control, as well as an integrated USB-DSD-DAC with both PCM and DSD decoding capability (directly hook up from PC or MAC) . It can easily surpass the sonic performance of competitors US$6,000-$8,000 offerings.

This pre-amp can use more than 6 different models of tubes to fine-tune the tonal quality as well as dynamics and richness, .

Non-feedback pure tube design with very open , smooth and sweet tonal quality.

Dual RCA pre-out for easy bi-amp connection

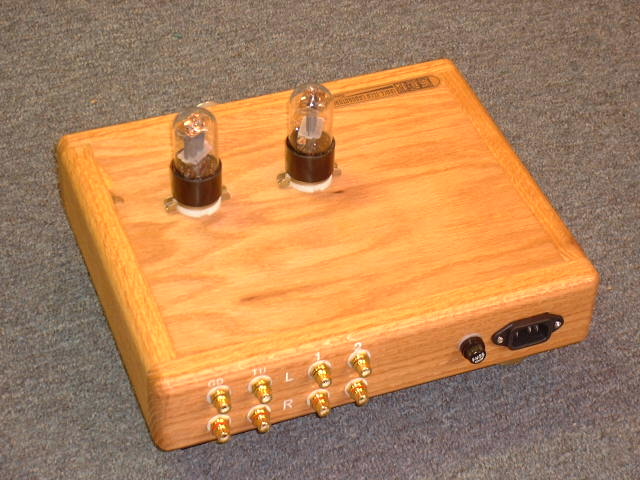

regular chassis: heavy duty solid aluminum. Optional chassis can be solid-oak, black lacqor or pleixglass/aluminum hybrid.

Implimented our new "V-tube" circuit design. Vintage tube gears sound from modern components, with superb high resolution and 3D holographic sound stage.

USB input can take native 64DSD, 128DSD, 256DSD , 16-32bit/ 44.1Khz-372Khz PCM signal

Specifications
No. of inputs 1 set of USB input, 2 sets of line level RCA inputs
No. of outputs 2 set of RCA outputs
Max. input level 2Vrms
Freq response 2Hz - 80Khz (-3db) for line stage
S/N > 85 db
Gain x3- x6 depend on type of tubes
manufacturing hand-wired point to point for tube section
Phase 180deg inverted non-feedback design
Input impedance 82Kohm
Default tube : 6SL7 (alt : 6SN7/6SU7/ECC32/ECC33/ECC35/6188 or equiv)
1 year free parts and labor warranty under normal operation conditions
