Pre-Amps - Combo Series

Model no: CP-101 / CP-101-TP / CP-101-TPHP
Direct out-of-the-factory price

C$1,880 Untitled Document [US$ 1504] / C$2,080 [US$ 1664] / C$2,480 [US$ 1984]

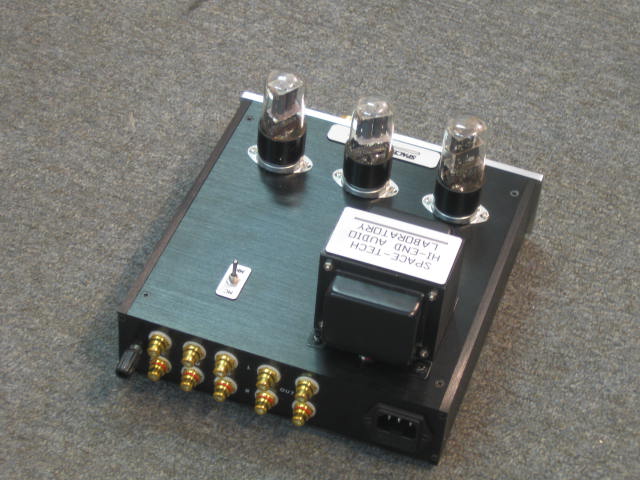

CP-101-2

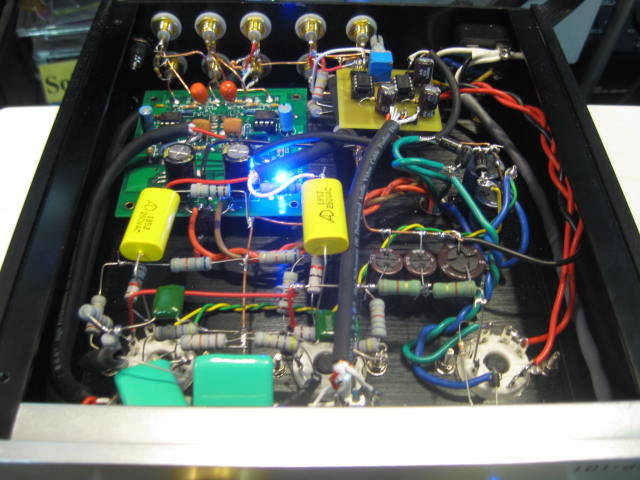

CP-101 internal

(6X5GT + 6SL7 / 6SN7 x 2 pure tube pre-amplifier)

CP-101 (with high gain super low noise SS MC / MM phono stage

+ 1 Watt x 2 Heaphone Amplifier)

CP-101-TP (with pure tube MM phono stage )

CP-101-TPHP (with pure tube MM phono stage + 1W x 2 headphone amp)



Using the most common 6SL7 as the amplification section gives you the most warm and easy rendition with such a low price. Once you experience this starting model of our products superior performance, you will see our higher models are beyond comparison.

This is one of our best selling models of pre-amplifiers integrated with a high gain MC (+70db) / MM (+45db) phono stage, let you enjoy both digital and anlaog media in one single unit. It can easily surpass the sonic performance of competitors US$6,000-$8,000 offerings.

MC loading impedance default 200ohm, can change to whatever value by putting in different loading resistors.

This pre-amp can use more than 6 different models of tubes to fine-tune the tonal quality as well as dynamics and richness, .

Non-feedback pure tube design with very open , smooth and sweet tonal quality.

High quality super low noise 1Wrms x 2 headphone amplifierd included, you don't need to turn on your power amp in order to enjoy music from headphone.

Dual RCA pre-out for easy bi-amp connection

Implimented our new "V-tube" circuit design, vintage tube gears sound from modern components with superb high resolution and 3D holographic sound stage reproduction.

Optional: IR remote motorized volume control add C$180



Specifications
No. of inputs 1 set of CD input, 1 set of MC phono input (200ohm) , 1 set of MM phono input (47K)
No. of outputs 2 set of RCA outputs, 1 headphone output with 1Wx2 max. power
Max. input level 2Vrms
Freq response 2Hz - 80Khz (-3db) for line stage , 20Hz-20Khz (+/-0.5db) for phono stage
S/N > 85 db
Gain

x3- x6 depend on tube types , 45db for MM input , 70 db for MC input

40db for pure tube MM phono version

manufacturing hand-wired point to point for tube section
Phase 180deg inverted non-feedback design
Input impedance 82Kohm line input, 10ohm -47K presettable for MC input, 47Kohm for MM input
Default tube : 6SL7 (alt : 6SN7/6SU7/ECC32/ECC33/ECC35/6188 or equiv)
1 year free parts and labor warranty under normal operation conditions
