Pre-Amps - Combo Series

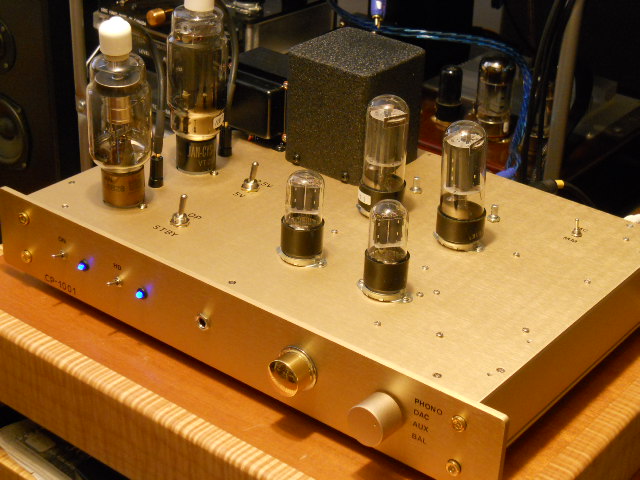

Model no: CP-1001
$3,880 Direct Order Price

( 6SL7 x 2 + 6L6GT x 2 pure tube pre-amplifier)

with built-in STR-104 super rectifier

+ high gain super low noise MC / MM phono stage

+ 24bit /192Khz DAC with SPDIF and USB input

+ 2 Wrms x 2 Heaphone Amplifier



Using the most common 6SL7 as the amplification section gives you the most warm and easy rendition with such a low price. Once you experience this model of our products superior performance, you will see our other higher models are beyond comparison. All tube section built with point-to-point and component-to-component hand wiring technique to ensure max. transparency and natural tonal quality.

This is one of our best selling models of pre-amplifiers integrated with a high gain MC (+70db) / MM (+45db) phono stage, as well as a 24bit / 192Khz hi-end DAC , let you enjoy both digital and anlaog media in one single unit. This pre-amp can easily surpass the sonic performance of competitors US$10,000-$20,000 offerings.

MC loading impedance default 200ohm, can change to whatever value by putting in different loading resistors. MC gain default x15 (+23.5db) , can change to whatever gain settings with different gain resistors.

This pre-amp can use more than 6 x 10 x 10 = 600 different combination of tubes to fine-tune the tonal quality as well as dynamics and richness, .

Non-feedback pure tube ORGANIC design for the line-stage with very open , smooth and sweet tonal quality. Those big output power tubes give exceptional richness and texture as well as high density to regenerate the real live performance soundstage, which is never possible from those smaller tubes pre-amps in the industry, no matter how much price they asked for.

High quality super low noise 2Wrms x 2 headphone amplifierd included, you don't need to turn on your power amp in order to enjoy music from headphone.

Dual RCA pre-out and Dual XLR pre-out for easy bi-amp to quad-amp connection. Equipped with both fixed and variable output option, you don't need to have gain control in the power amp for multiple amp configuration and still can achieve the most perfect tonal balance.

Implimented our new "V-tube" circuit design, vintage tube gears sound from modern components with superb high resolution , high density and 3D holographic sound stage reproduction.

The built-in super recitfier section can let you use the legendary 300B and 2A3 tubes in this pre-amp, and enjoy those tubes sound with just a minial cost. We believe we are the only one can offer such a super high flexibility of tube rolling with such a low price tag, and with such superb sonic performance at the same time.



Specifications
No. of inputs 1 set of XLR input, 1 set of AUX input , 1 set of MC phono input (200ohm) , 1 set of MM phono input (47K) , 1 set of SPDIF (coaxial) input , 1 set of USB input
No. of outputs 2 sets of RCA outputs, 2 sets of XLR outputs ,1 headphone output with 2Wx2 max. power
Max. input level 2Vrms
Freq response 2Hz - 100Khz (-3db) for line stage , 20Hz-25Khz (+/-0.5db) for phono stage
S/N > 85 db
Gain x3- x6 depend on tube types , 45db for MM input , 70 db for MC input
manufacturing hand-wired point to point for tube section
Phase 180deg inverted non-feedback design (option: non-inverted )
Input impedance 82Kohm

Default tubes :

6SL7 (alt : 6SN7 / 6SU7 / ECC32 / ECC33 / ECC35 / 6188 or equiv)

6L6GT (alt: 6G6 / 6Y6 / 6K6 / 6V6 / 6F6 / EL34 / 6550 / KT66 / KT77 / KT88 / KT99 / KT100 or equiv)

3B22 (alt: 300B / 2A3 / 836 / 866A / 1616 / 3B28 or equiv)

Warranty

1 year free parts and labor warranty under normal operation conditions, extend warranty possible with additional cost
