Single-Ended Tube Amps

Model no:   SE-6AS7G-2W
$1,280 Direct Order Price


Lacqor black version with trims


Standard metallic black version

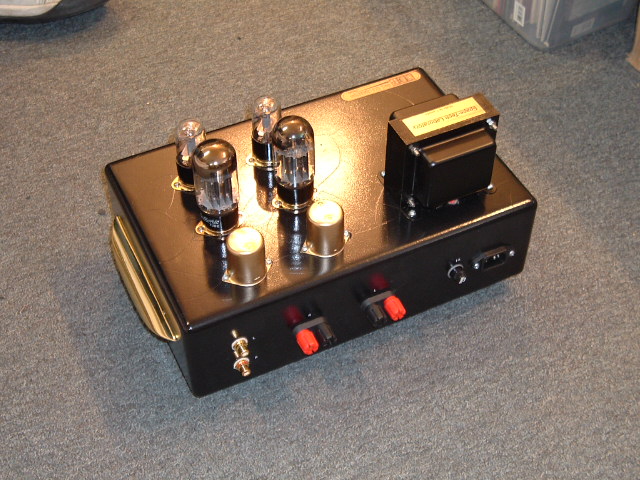

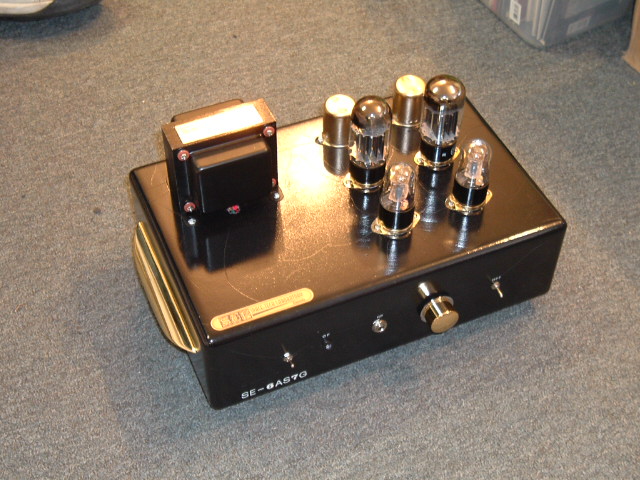

Black -gold finish (G version)


Standard metallic black version with 3 I/P



2W x 2  single-ended power amplifier

This is one of our best sounding single-ended power amplifiers. Although it only outputs 2Wrms it can nevertheless drive a pair of speakers with 88db/W efficiency to a reasonable loudness level. It is also a very high quality headphone amplifier, with a super quiet, super warm, rich sound. The output transformer employs a NOS UTC 2W wide band transformer.

This is the enhanced version of our small powered 6AS7G amp, which has a bigger power transformer for higher power output capability as well as a more transparent sound quality. This version can be built with a 300Hz (option: any freq) high pass filter with a by-pass switch. This makes it easier to adapt between a normal single amplifier system or a bi-amped configuration. Input level controls give flexibility to best match the tonal balance between the hi-section and lo-section amplifiers in a bi-amped system.

The sound quality of this amp is very liquid and fluid, with superb openness and natural organics in the sound stage. We are confident you will love it.

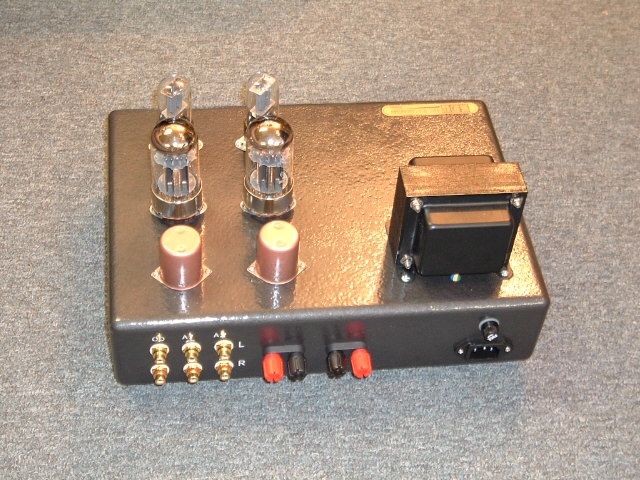

Lower photo set shows a 3 input version.

Standard chassis includes MDF construction in any color, or a gold/silver aluminum type.



Specifications
No. of inputs 1 set of RCA inputs
No. of outputs 1 set of speaker outputs ( 4-16 ohm)
Freq response 20Hz - 40Khz (-3db) (300Hz-40Khz for High-pass-filtered position )
S/N > 80 db
Phase non-inverted (option: inverted)
manufacturing hand-wired point to point
Tubes used 2 x 6SN7/6SL7/6SU7 + 2 x 6AS7G
Output power /ch 2Wrms pure class A, single-ended

add C$100 for solid oak chassis

add C$150 for black piano finish

add C$100 for black lacqor finish

add C$200 for black-gold finish (G version)

1 year parts and labor warranty, tubes 90 days under normal operation conditions
standard chassis : Gold/Silver/Red/Green/Blue/ Black Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
