Phono Tube Pre-Amps

Model no: P-101-Mk3
C$780 Untitled Document [US$ 654]

P-101.jpg P-101.jpg

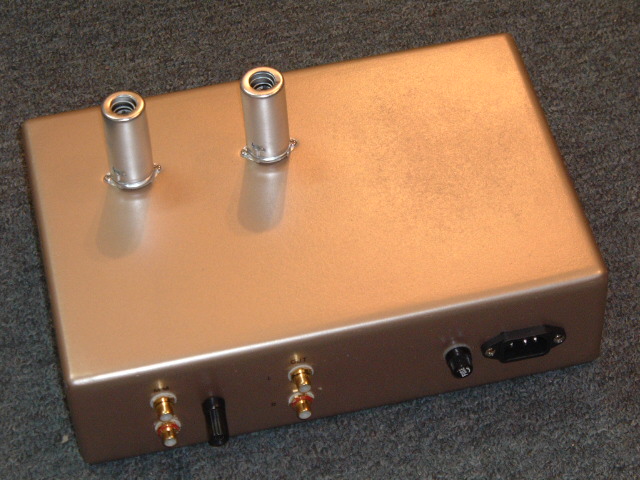

MM Phono pre-amplifier

This is an all hand-wired high grade phono stage using 12AX7 tubes as an amplification stage. All components are meticulously selected and crafted in order to achieve the finest sound quality. This product offers superb resolution at a very reasonable price.This phono stage provides both openness and a sweetness of character. Offering a 40db gain, which can match with any MM cartridge in the industry.

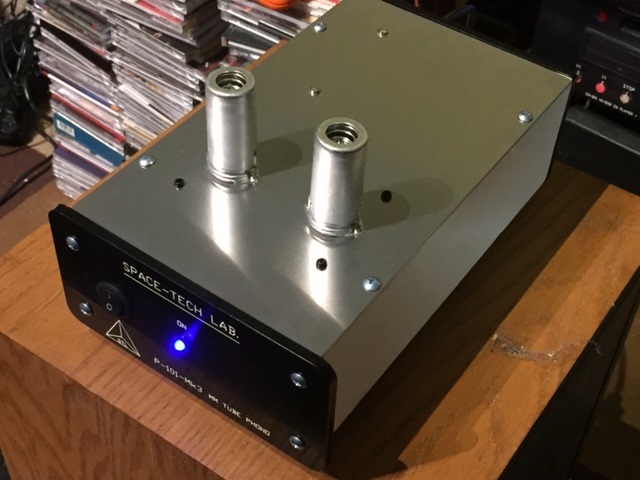

This is our new Mk3 design with super low noise level and more natural sonic performances as well as much higher dynamics over our previous designs. We can modify your older version into this new version, additional cost apply.



Specifications

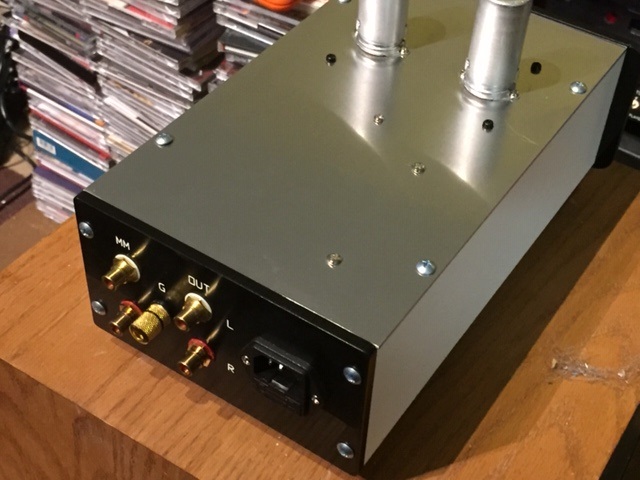

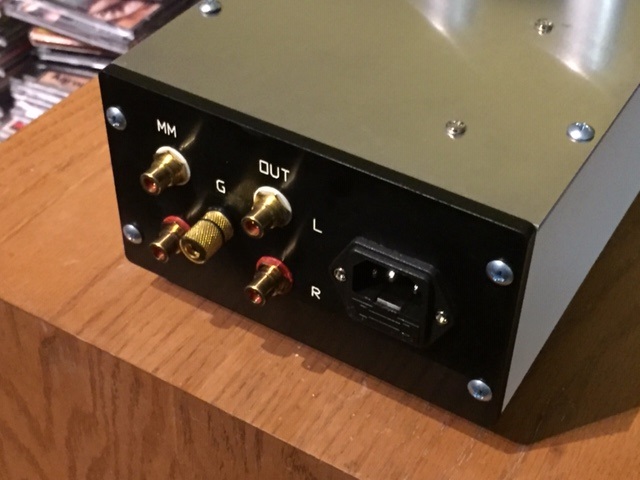

No. of inputs 1 set of RCA inputs (Moving Magnet cartridge)
No. of outputs 1 set of RCA outputs
Freq response RIAA +/- 0.5db  from 20Hz - 20Khz
S/N > 75db
Max. output volt 10Vrms
Phase non-inverted
manufacturing hand-wired point to point

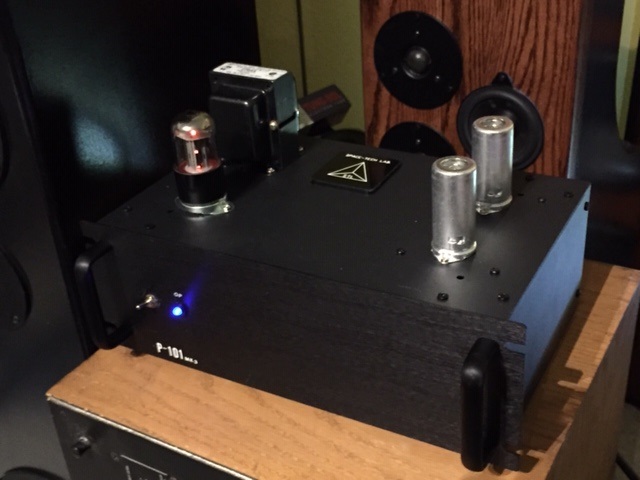

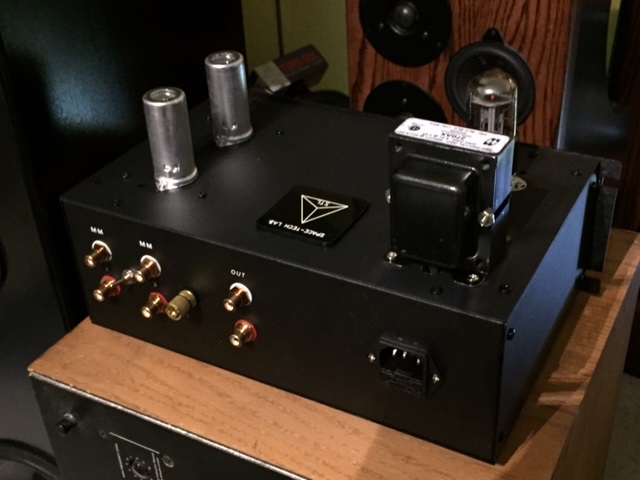

Tubes used 2 x 12AX7 (optional: 6X4 / 6X5 rectifier)

option: 6X5 tube rectifier stage add C$200

1 year parts and labor warranty, tubes 90 days under normal operation conditions

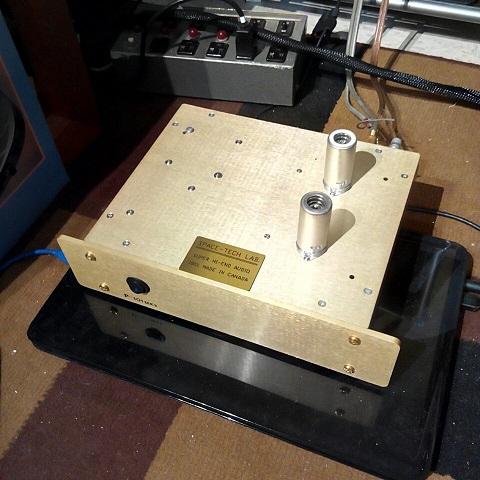

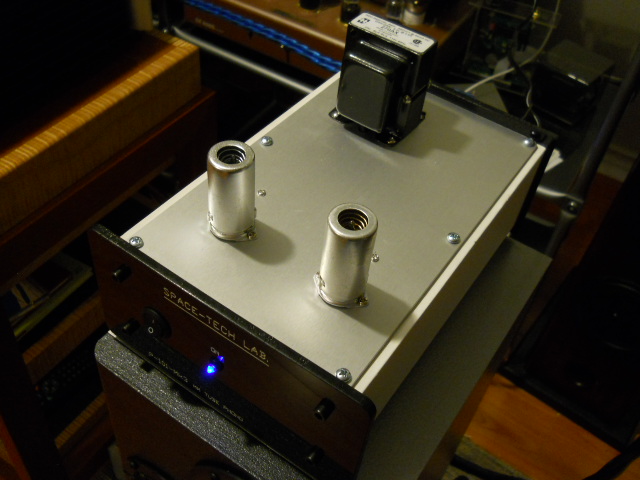

standard chassis : Gold/ Black/Metallic  MDF , Aluminim chassis

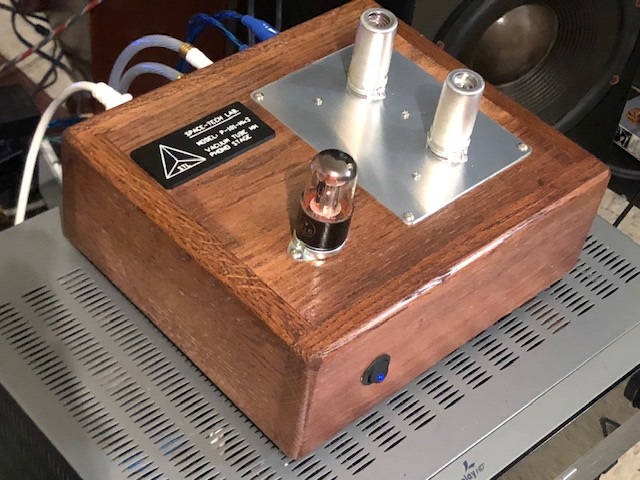

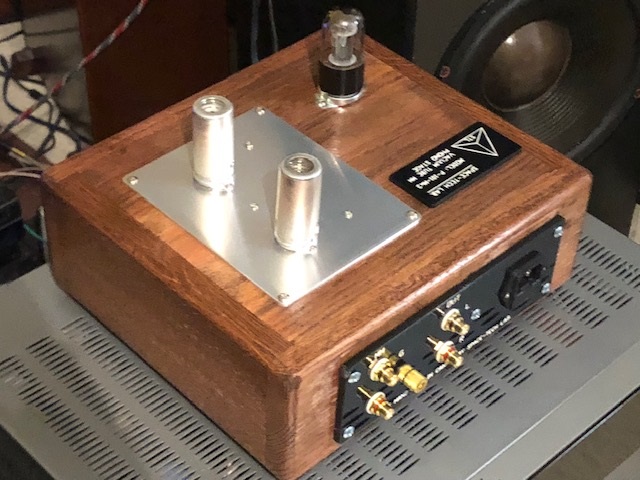

(optional chassis : Mirror steel, solid-oak )
