IR Remote Volume / Passive Pre-amp



Model no:   RV-1003
C$2,080 Untitled Document [US$ 1664] (Infra-red remote only)

C$2,280 [US$ 1824] (Infra-red + Bluetooth remote for Android / iOs)

RV-1003-1 RV-1003-1

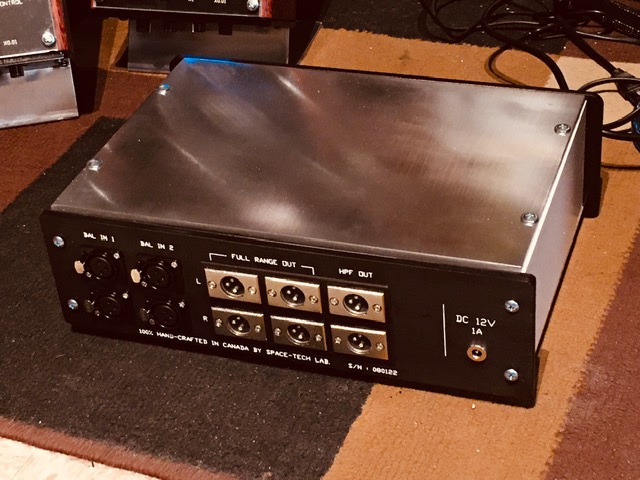

Hi-end fully balanced 100 micro-step Infra-Red remote volume control / Passive pre-amplifier with 2 remote inputs and 3 outputs
Specifications
No. of inputs 2 sets of  XLR  input (max. 5V p-p)
No. of outputs 2 sets of full-range XLR output + 1 set of high pass filtered XLR output
Freq response DC - 1MHz (1,000Khz)
S/N better than 120 db
Distortion passive network, non-measurable
step of attenuation  0 to 99  (totally 100 steps)
input impedance 100Kohm (linear mode)
Functions Volume Up, Volume Down, balance control, Mute





1 year free parts and labor warranty under normal operation conditions
standard chassis :Polymer side panels , Aluminum top and bottom with black plexiglass front and back.

Any other chassis option possible , additional cost might apply.
