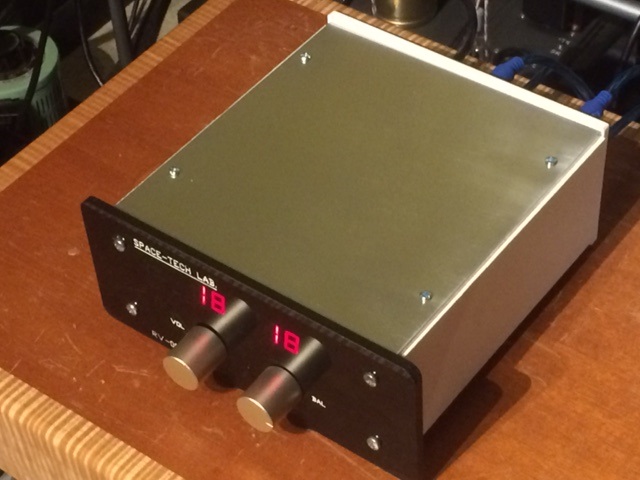

IR Remote Volume / Passive Pre-amp

Super delux and ultra heavy duty aluminum chassis upgrade possible from just $100 and up

Model no:   RV-001
C$680 Untitled Document [US$ 544]

RV-001 work with amplifier to provide remote volume capability

Hi-end 100 micro-step Infra-Red remote volume control / Passive pre-amplifier

No. of inputs 1 set of  RCA  input (max. 10V p-p)
No. of outputs 1 set of RCA output
Freq response DC - 1MHz (1,000Khz)
S/N better than 120 db
Distortion less than 0.01%
step of attenuation  0 to 99  (totally 100 steps)
input impedance 100Kohm (linear mode)
Functions Volume Up, Volume Down, balance control, Mute


1 year parts and labor warranty under normal operation conditions
standard chassis : smoke black plexiglass front and back, plexiglass top and bottom , low resonance white side panel.

Any other chassis option possible , additional cost might apply.
