Model no: SP-ST-100
C$1080/pr (clear plexiglass version) [US$ 864]

C$1480/pr (black MDF version) [US$ 1184]

C$2080/pr (piano black MDF version) [US$ 1664]

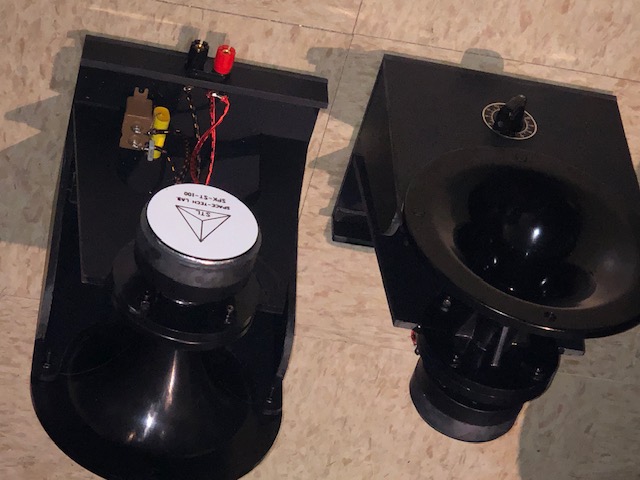

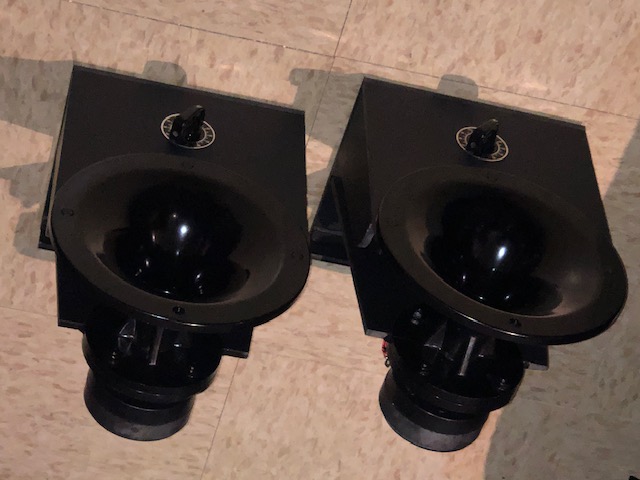

Hi-End 7" Mini-Horn super tweeter

This is an add-on Horn module for any existing speaker system. Diameter of horn is a very user friendly 7". This unit can add superb 3D texture to the music as well as clarity and micro details with weight. Built-in crossover use NOS high quality oil cap with precision output level control.. It can be simply put on top of any existing speaker system to impart an airy, dynamics, weight and 3D holographic imaging.

Variable output controls with high efficiency low loss oil capacitor and Western Electric cloth wires crossover, ensure 100% matching capability with your existing system. A build-in crossover network is featured for easy connection. (default: 10Khz @-3db, other frequency possible upon request)

Default design with high tech clear plexiglass stand. Variation in design and material possible . Additional cost might apply.



Specifications

Input terminals	Multi-purpose Banana jacks
Power Amp rating	0.5W - 300Wrms
Freq response	10KHz - 20Khz  (default) / (custom crossover frequency upon request)
Efficiency	>100db
Max. power input	300W full range musical
Impedance	>8 ohm above 5Khz, almost infinite impedance below 1Khz (no loading effect for amplifier)



1 year parts and labor warranty
