Model no:   SE-6BQ5-HP
C$1880 Untitled Document [US$ 1504]

SE-6BQ5.jpg  SE6BQ5-3.jpg









6W x 2 (or 1W x2 with NOS UTC OPT)   single-ended power amplifier

This is our entry level single-ended power amplifier, using the most common 6BQ5 small power tube as the output section. A total of 4 output transformers are used to deliver the 6Wrms maximum. This amplifier can drive speakers with an efficiency above 86db/W, it can also use as the second amp to drive the tweeter section of a bi-wireable speaker system.

For this low price you won't find anything in the market which sounds better than this amplifier.

The oak chassis unit pictured is a special version built with NOS UTC 2W output transformers, which can deliver 1Wrms of output power.

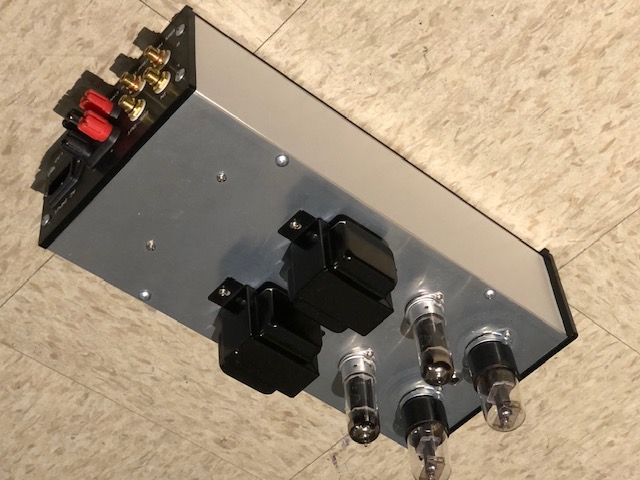

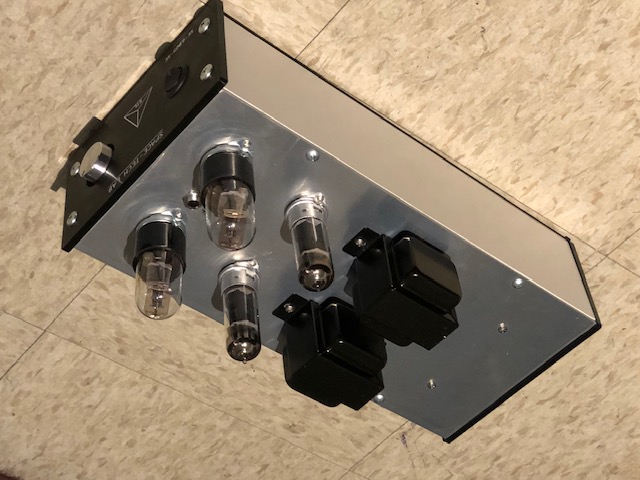

The lowest photo set shows a headphone amp version with XLR balanced outputs and a dual input selector, for a small additional cost.



Specifications
No. of inputs 1 set of RCA inputs
No. of outputs 1 set of speaker outputs ( 4-16 ohm)
Freq response 40Hz - 80Khz (-3db)
S/N > 80 db
Phase non-inverted (option: inverted)
manufacturing hand-wired point to point
Tubes used 2 x 12AX7 + 2 x 6BQ5
Output power /ch 6Wrms pure class A, single-ended

or 1Wrms use NOS UTC OPT

1 year parts and labor warranty under normal operation conditions
standard chassis : Gold/ Black/Metallic  MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
