Active Crossovers

Model no:   V-3WXO-BAL-Mk2
C$3,680 Untitled Document [US$ 2944] (12db/oct)

C$4,880 [US$ 3904] (24db/oct)





3 way all tube electronics crossover system (12db/oct)

This is a very high-end tube three way crossover system. The cut-off slope is 12db/oct, which makes it very adaptable to different types of speakers and amplifiers. Crossover frequency modules are replaceable for different requirements. An optional cut-off slope of 18db or 24db is also available at customer request. A selectable 16 crossover freq module is offered for an additional C$150 or 256 selectable module for an additional C$200. Customers can specify any frequency range with equal intervals.

With this crossover system you will experience exceptional details within the music, every music note flowing in front of you effortlessly . Clarity without boundaries which conventional system don't even be able to compare with

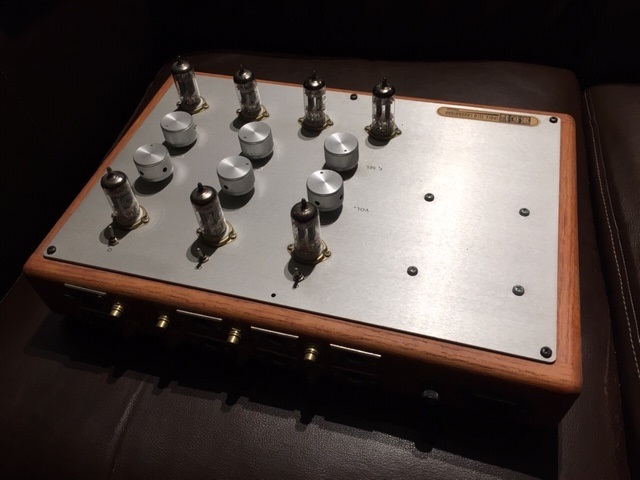

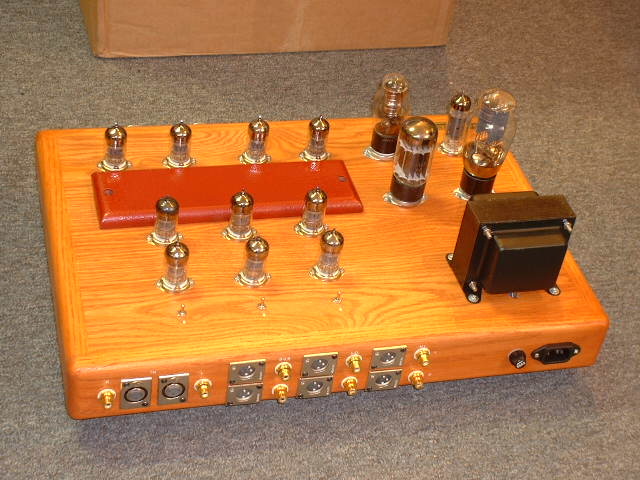

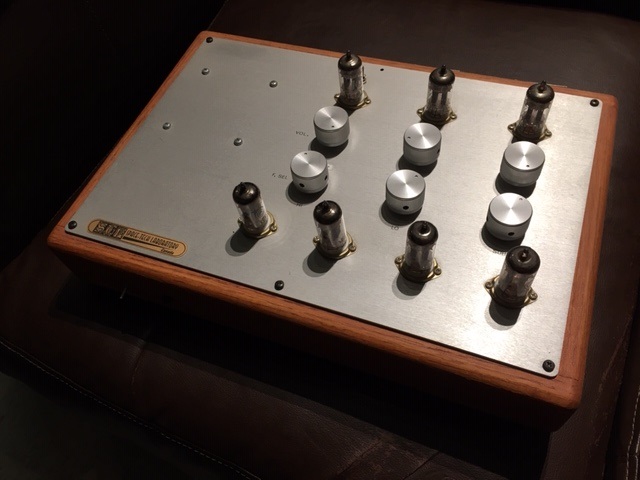

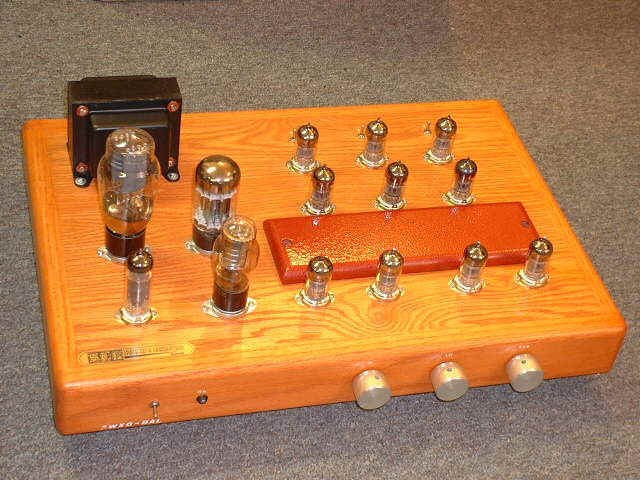

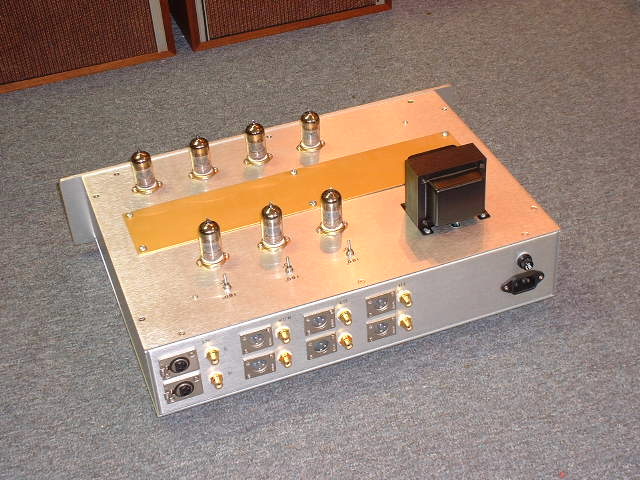

The upper set of photos shows the standard version. The lower photo set shows an up-graded all tube regulated power supply with a 24db/oct roll-off.



Specifications
No. of inputs 1 set of RCA + balanced  inputs
No. of outputs 1 set of RCA+ balanced  hi-freq outputs

1 set of RCA+balanced   lo-freq outputs

1 set of RCA+balanced super-lo/hi freq outputs

Freq response 1Hz - 100Khz (-3db)
S/N better than -85 db
Max. output volt 10V rms
Gain x 0.9
Phase non-inverted
manufacturing hand-wired point to point for tube section
Tubes used 7 x 12AX7 or 12AU7

1 year parts and labor warranty, tubes 90 days under normal operation conditions
standard chassis : Gold/ Black/Metallic  MDF , Aluminum chassis

(optional chassis :  Mirror steel, black piano , solid-oak )
