Active Crossovers

Model no: V-2WXO-BAL
C$2,880 Direct Order Price

2 way all tube balanced electronics crossover system (12db/oct)

This is a very high-end tube two way crossover system. The cut-off slope is 12db/oct, which makes it very adaptable to different types of speakers and amplifiers. Crossover frequency modules are replaceable for different requirements. An optional cut-off slope of 18db or 24db is also available at customer request. A selectable 16 crossover freq module is offered for an additional C$180 or 256 selectable module for an additional C$200. Customers can specify any frequency range with equal intervals.

With this crossover system you will experience exceptional detail inside the music, every note displayed in front of you effortlessly. Clarity without boundaries that conventional systems don't begin to compare with.

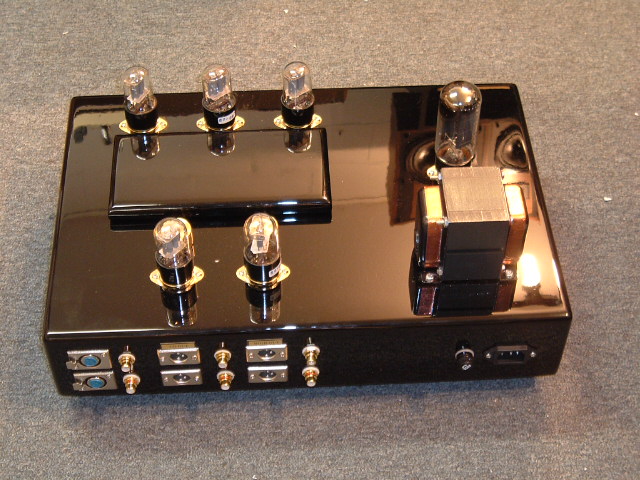

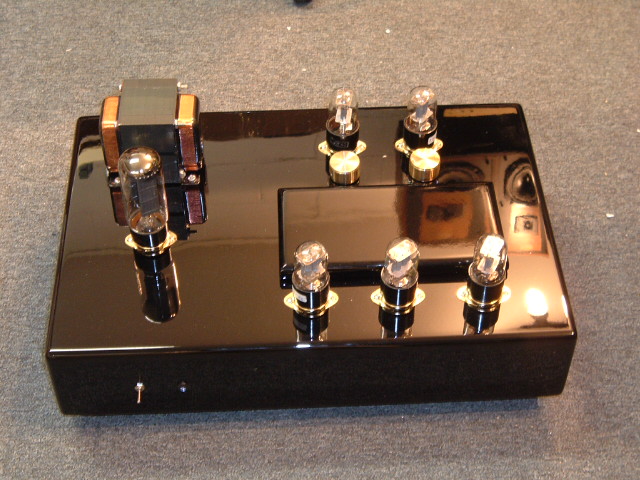

Upper photo set shows a special version with an enhanced power supply, a 5U4G tube rectifier, it also boasts an additional main level control. 24db/oct slope.

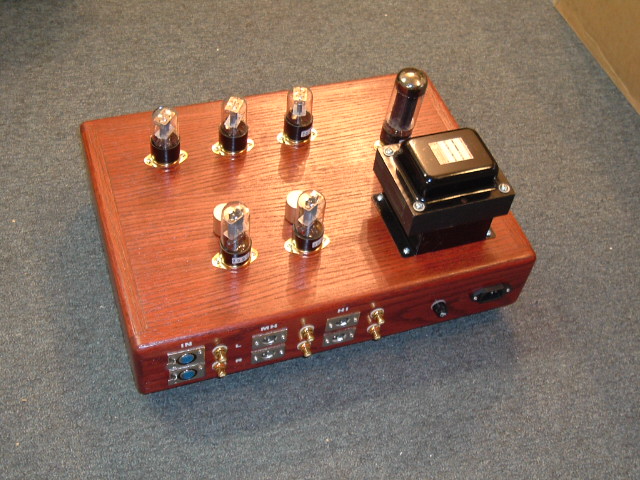

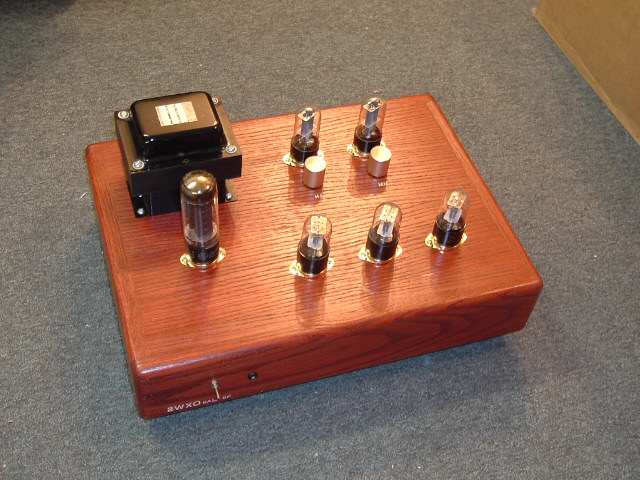

Lower photo set shows a special version with an enhanced power supply and 5U4G tube rectifier, medium size tubes (uses both 6SL7 and 6SN7 ), 12db/oct slope.



Specifications
No. of inputs 1 set of RCA + balanced inputs
No. of outputs 1 set of RCA+ balanced hi-freq outputs + 1 set of RCA+balanced lo-freq outputs
Freq response 1Hz - 100Khz (-3db)
S/N > 85 db
Max. output volt 10V rms
Gain x 0.8
Phase inverted
manufacturing hand-wired point to point for tube section
Tubes used 5 x 12AX7 or 12AU7


1 year parts and labor warranty under normal operation conditions

standard chassis : Gold/ Black/Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
