Internet / Ethernet remote control robot

NETBOT-100-2

Model no: NETBOT-100

LAN/WAN remote robotic control for warming-up of your audiophile system before you got home

C$ 480 (CPU and ethernet board only )

C$ 1,080 (completely assembled version)

This is our new 2012 design , which can integrated the most advanced NET robotic remote control into your audiophile system or just anything you can imagine of.

This unit can remote control 4 sets of AC outlet , 2 sets of on/off contact , and one set of robotic fingers/angular motion platform/any custom made motion device.

You can now pre-warm-up your audio system (or turn on/off anything ) when you are at your office or anywhere in the world , either via desktop / laptop computer or your cell phone. Just use internet browser , you can then get full control of your gadgets just anywhere. (no software installation needed, just plug and play with proper configuration of your router, full technical support provided)

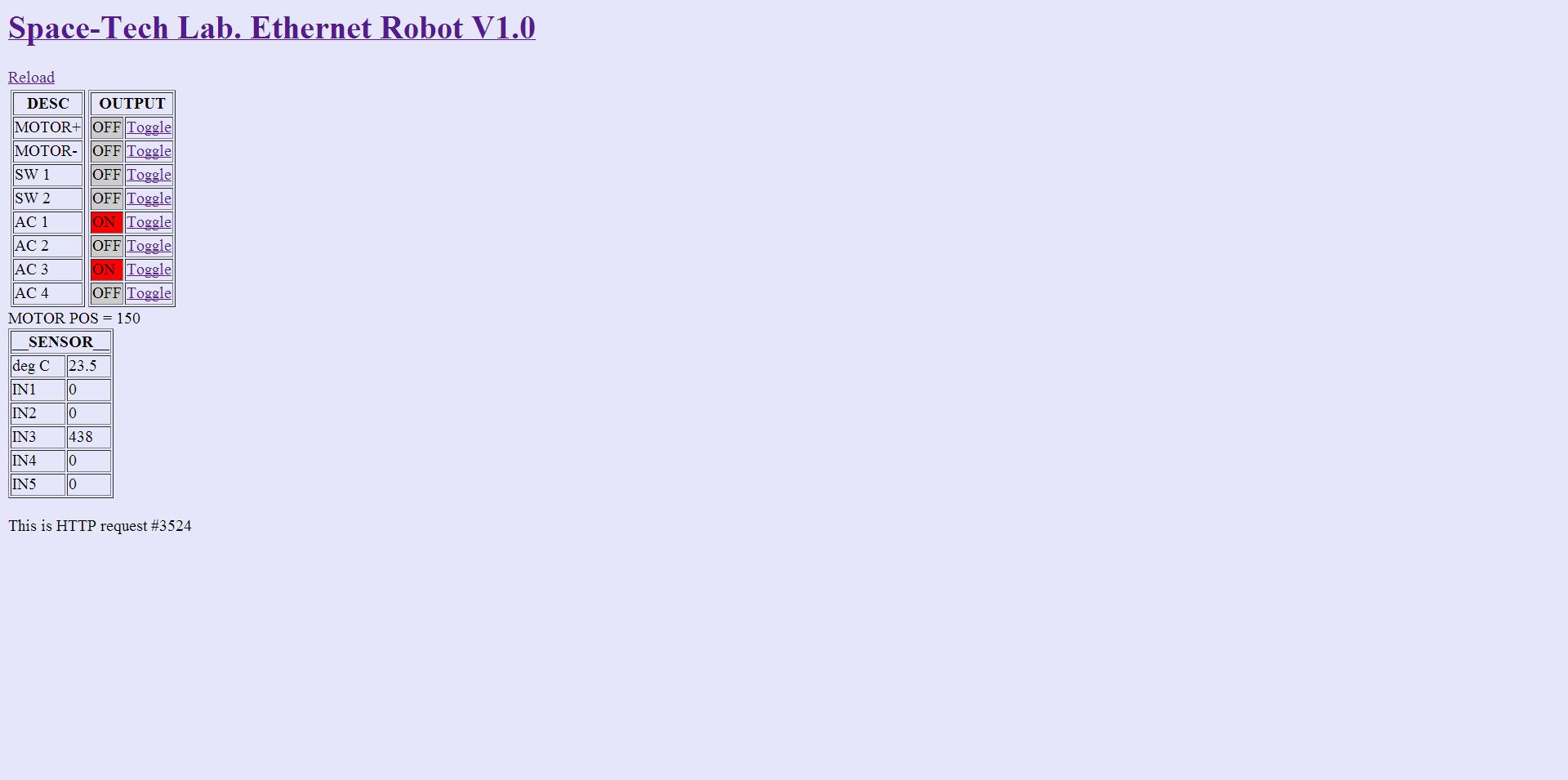

screen shot

Max. output power of each AC outlet is 250W 50/60Hz, 4 outlets can be used at the same time. LED indicator with every AC outlet included.

On/off high speed reed relay contact with power rating of 1A 50VDC max, 2 relay outputs total

6 sensor feedback inputs for real time monitoring of 1024 different levels of signal, such as intruder/visitor position, water level of fish tank, water leakage sense, door opening status, temperature sensor....etc. (one temperature sensor included )

One servo motor output , a mini robotic finger for up/dn or 100 microstep motion control included with both version, just to let you remotely push/flip a switch like a real human finger.

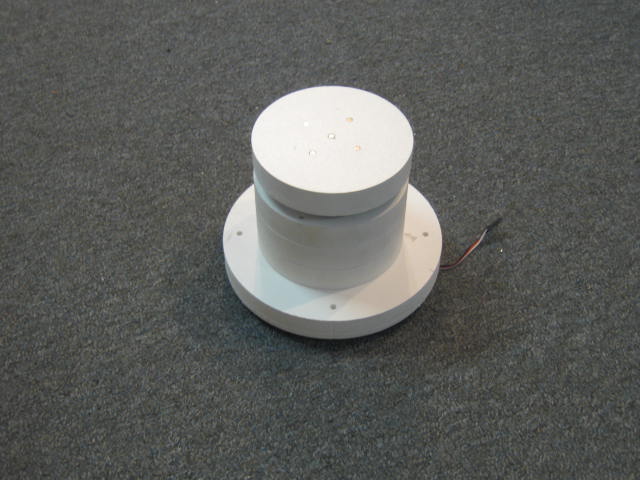

For optional custom order with additional cost , any robotic device such as linear/angular motion platform can be remotely controlled

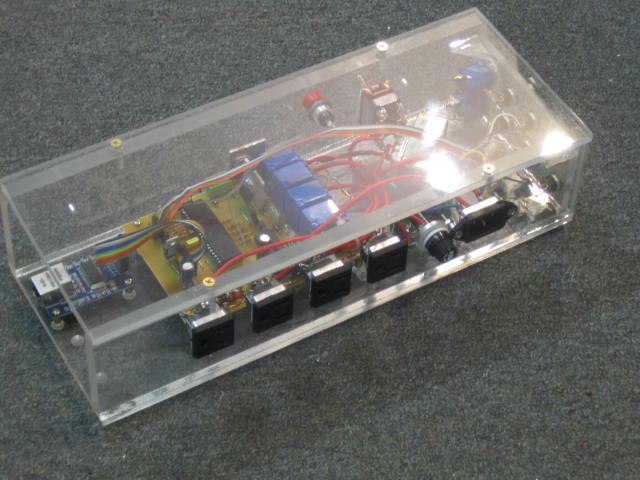

For completely assmebled version, heavy duty clear plexiglass housing as default chassis, all other cabinet option possible upon request, cost might vary.

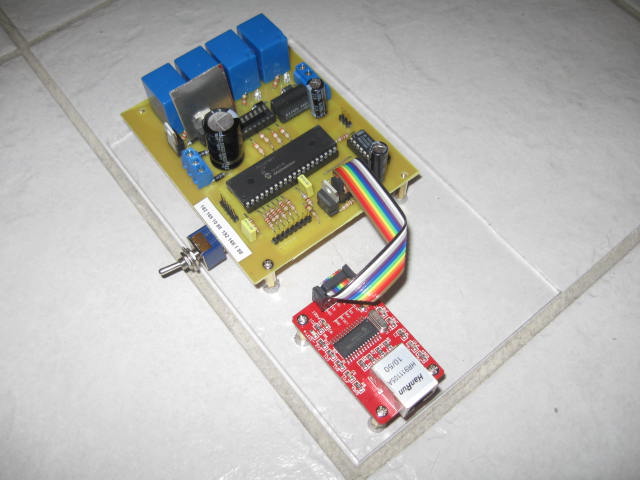

For DIY modular version, main processor board with ethernet adapter mounted in clear plexiglass base, and mini-robot finger included , you just need to apply 9-12V DC to the board, and do all the input/output wiring by yourself

1 year free parts and labor warranty with technical support included , depend on locations, local customer may enjoy free in-house setup and training service.

(note: the module version is for DIYer who have enough knowledge about electronics wirings only)
